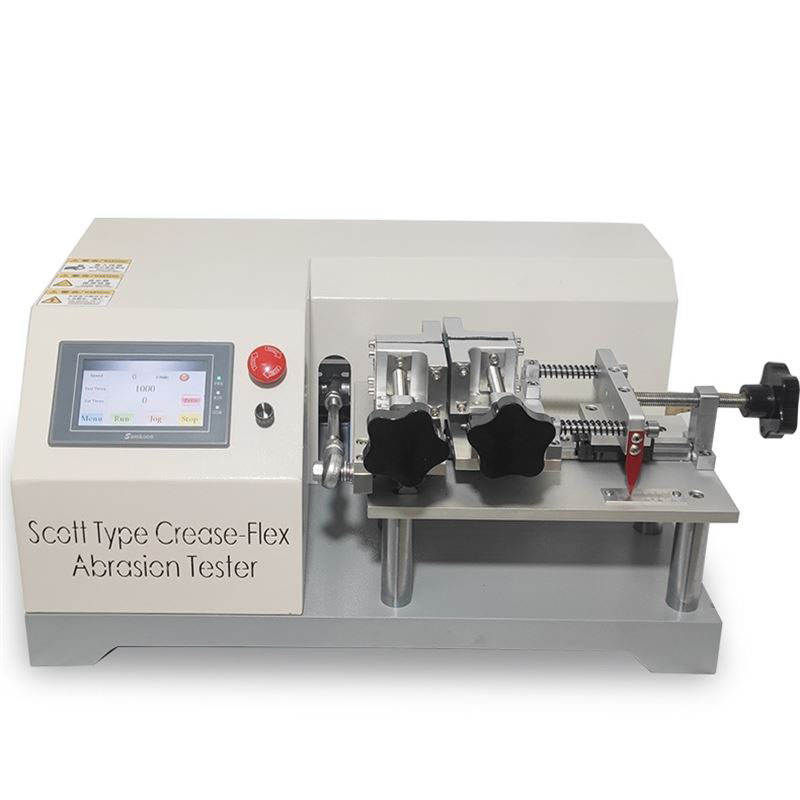

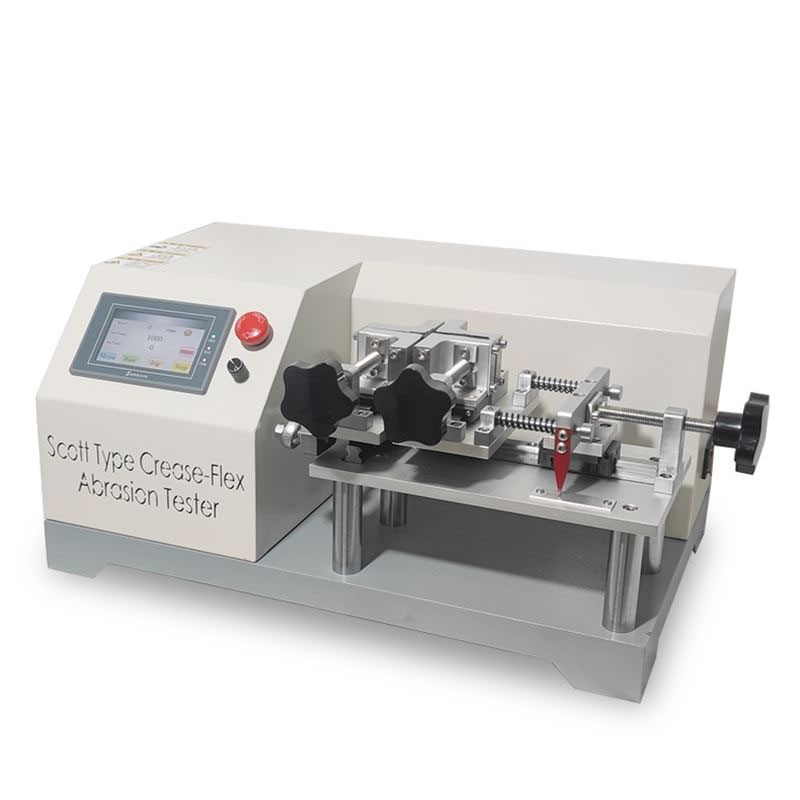

WT-6058D Scott rubbing friction testing machine

WT-6058D Scott rubbing friction testing machine.pdf

1. Introductions

The Scott rubbing friction testing machine is used to test the rubbing resistance of materials such as leather, fabrics, and coated fabrics. During the test, overlap the cloth surfaces of two specimens in the same direction, and then place them in the Scott rubbing friction testing machine fixture with a spacing of 30mm. Gradually reduce the distance between the fixtures, so that the cloth surfaces of the two specimens lightly contact and apply a load. The distance between the two specimens is reduced to a load of 9.8N. Under the condition of a frequency of 120 times/minute and a stroke of 50mm, repeat 1000 times to observe whether there are cracks, damage, or separation between the fabric and the coating on the surface of the artificial leather.

2. Relative test methods

GB/T 8948,JIS L1096, QB 1618,QB/T 5246

3.specifications

4. Features

4.1 Surface treatment of the body: Using DuPont powder from the United States and electrostatic spray painting technology, it is cured at high temperature of 200 ℃ to ensure long-lasting color fastness.

4.2 Mechanical components are composed of non corrosive structural aluminum and stainless steel materials;

4.3 Precision drive motor, running smoothly and with low noise;

4.4 LED-SLD806 integrated display control box, menu style operation mode

4.5 High precision bearings are selected for smooth and stable rotation, with a long service life;

4.6 One click automatic testing, independent control, simple and convenient operation;
