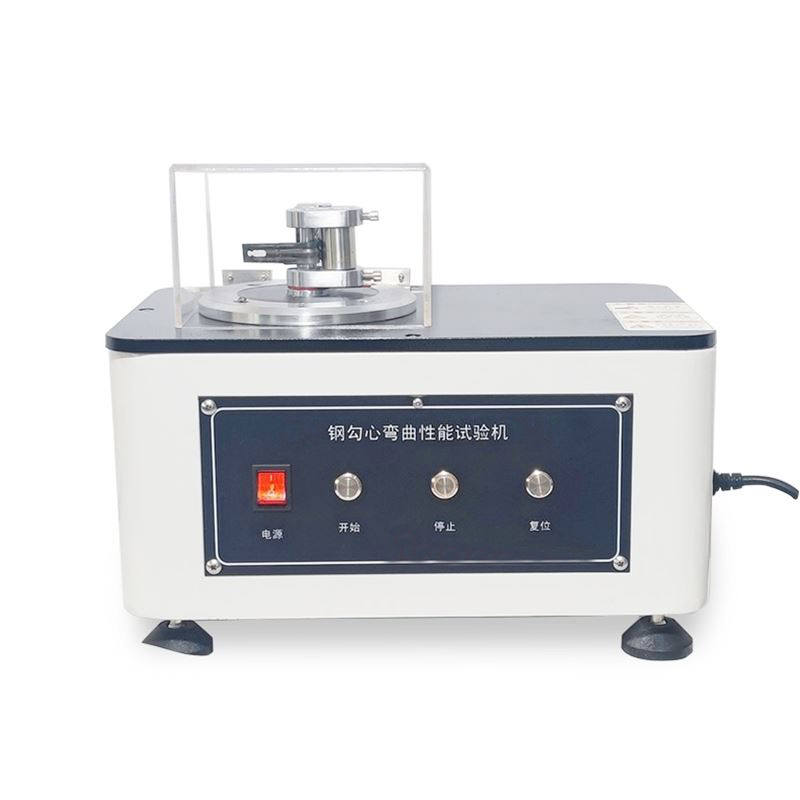

WT-6120B Electrical shank bending testing machine
WT-6120B Electrical shank bending testing machine
WT-6120B Electrical shank bending testing machine
WT-6120B Electrical shank bending testing machine.pdf
1. Introductions
The electric shank bending resistance testing machine is used to test the bending resistance of steel shanks. During testing, insert the steel shank into the fixture and rotate the shank 180 ° around the center column with a diameter of 10mm. Visually inspect the surface for small cracks and whether they are broken, in order to determine the bending resistance of the steel shank.
2. Relative test methods
GB/T28011 shanks for footwear
QB/T1917 Leather shoe steel shanks
3.specifications
No. | Item | Spec. |
1 | Bending angle | 0-180° |
2 | Center column diameter | 10mm |
3 | Protecting cover | 6mm thick transparent protecting cover |
4 | Dimension | 580x390x140mm |
5 | Weight | 20kg |
6 | Voltage | AC220V 50Hz |
4. features
l Flexible adjustable fixture, easy to install.
l New standard electric automatic bending.
l One click reset, automatic return to zero position
