200kg tensile load test device

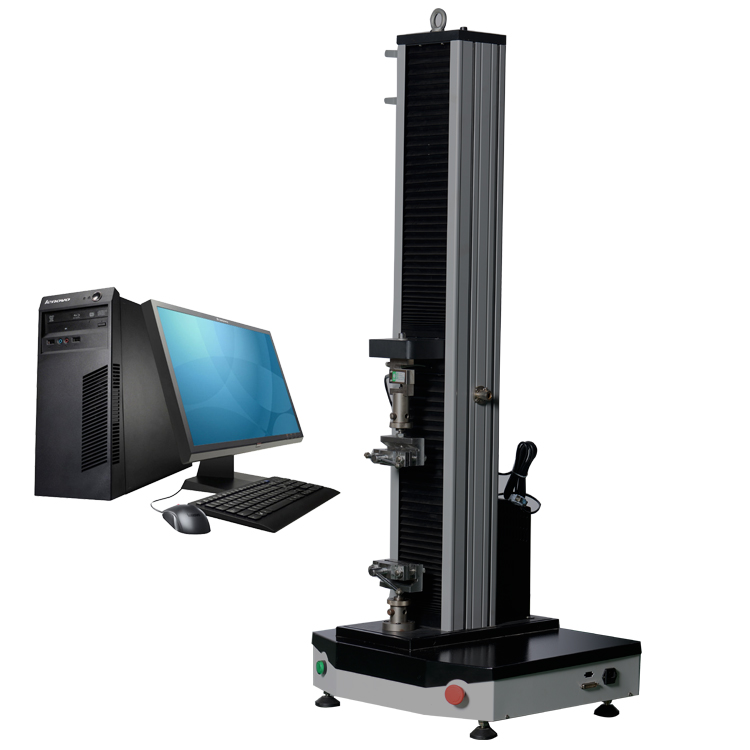

single column computer control electronic tensile testing machine

1 Introduction

l Suitable for tension, compress, shear, peeling, tear, test

l Attractive appearance, easy operating, stable and reliable

l Dual test space, upper space for tension test, bottom space for compress test

l Crossbeam speed can reach up to 1000mm/min, suitable for most test speed

l Low noise during test

l Suitable for industries of metal manufacturing, non-metal manufacturing, industrial and mining enterprises, technical supervision, commodity inspection and arbitration and other departments

2. Test method

GB/T 2611 testing machine General technical requirements

GB/T 16491 electronic universal testing machine

GB/T 13634 Calibration of standard dynamometer for single-axis testing machine inspection

ISO 376 Metallic materials-calibration of force-proving instruments used for the verification of uniaxial testing machines

GB/T 16825.1 Inspection of static single-axis testing machines - Part 1 : Tests and s

ISO 7500-1 metallic materials-verification of static uniaxial testing machines- parts 1: tension/compression testing machines-verification and calibration of the force-measuring system

GB/T 228 metal materials tensile test method at room temperature

GB/T 232 metal material bending test method

GB/T 7314 metal materials room temperature compression test method

3. Technical parameters

No	Item	Specification
1	Force capacity	100N,200N,500N,1000N,2000N,5000N
2	Force measuring range	0.4%-100%FS
3	Error of force value	Less than ±1% of set value
4	Resolution of test force	1/500000
5	Displacement resolution	0.0025mm
6	Accuracy of elongation measuring	±0.5%
7	Crossbeam speed range	0.05-500mm/min
8	Precision of displacement speed control	±1%(0.01-10mm/min); ±0.5%(10-500mm/min)
9	Accuracy of constant force, constant displacement, displacement elongation control	When set value is less than 10%FS，error is less than ±1.0% of set value When set value is more than 10%FS，error is less than ±0.1% of set value
10	Accuracy of deformation control	When set value is less than 0.05%FS，error is less than ±2.0% of set value When set value is more than 0.05%FS，error is less than ±0.5% of set value
11	Distance between tensile grips	650mm
12	Voltage	Single phase,220V±10%,50Hz
13	Dimension	520x480x1550mm
14	Weight	80kg
