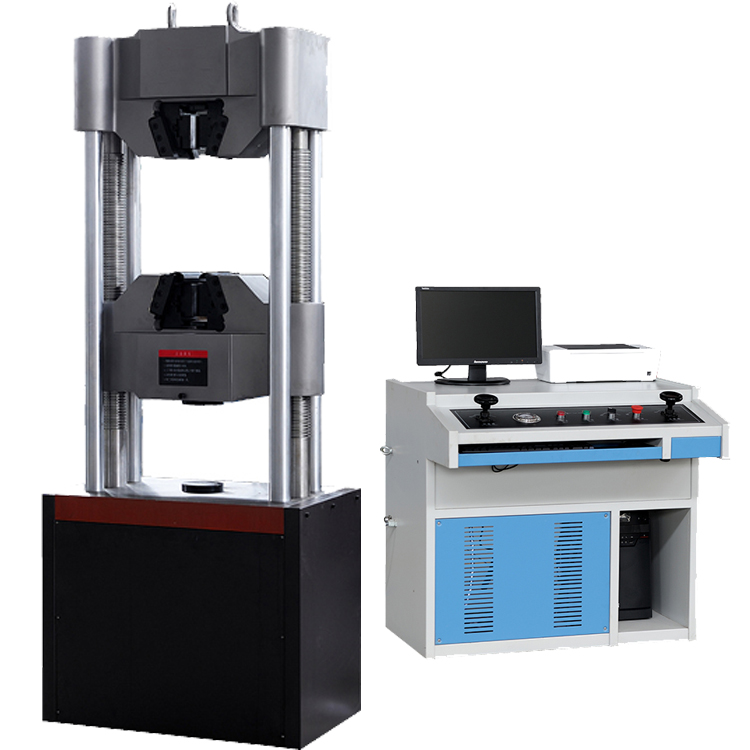

1000KN computer control electro-hydraulic servo universal testing machine(four columns two screws type)

1. Brief introduction

l  Suitable for tension, compress, shear, peeling, tear, test

l  Attractive appearance, easy operating, stable and reliable

l  Dual test space, upper space for tension test, bottom space for compress test

l  Crossbeam speed can reach up to 1000mm/min, suitable for most test speed

l  Low noise during test

l  Suitable for industries of metal manufacturing, non-metal manufacturing, industrial and mining enterprises, technical supervision, commodity inspection and arbitration and other departments

2.relative test method

GB/T 2611-2007 general requirement for testing machines

GB/T 3159-2008 hydraulic universal testing machines

GB/T 16826-2008 electro-hydraulic servo universal testing machine

JJG 1063-2010 electro-hydraulic servo universal testing machines

GB/T 16825.1-2008  verification of static uniaxial testing machines---part 1: tension/ compression testing machines---verification and calibration of the force measuring system

ISO 7500-1:2004 metallic materials-verification of static uniaxial testing machine-Part 1:tension/compression testing machines-verification and calibration of the force-measuring system

JJG 139-1999  tension, compression and universal testing machines

JB/T 6146-2007  specification for the extensometers

GB/T 228.1-2010 metallic materials---tensile testing---part 1: method of test at room temperature

ISO 6892-1:2016 metallic materials-tensile testing-part 1:method of test at room temperature

GB/T 7314-2017 metallic materials--- compression test method at room temperature

GB/T 232-2010 metallic materials---bend test

ISO 7438:2016 metallic materials-bend test

3. Specifications
