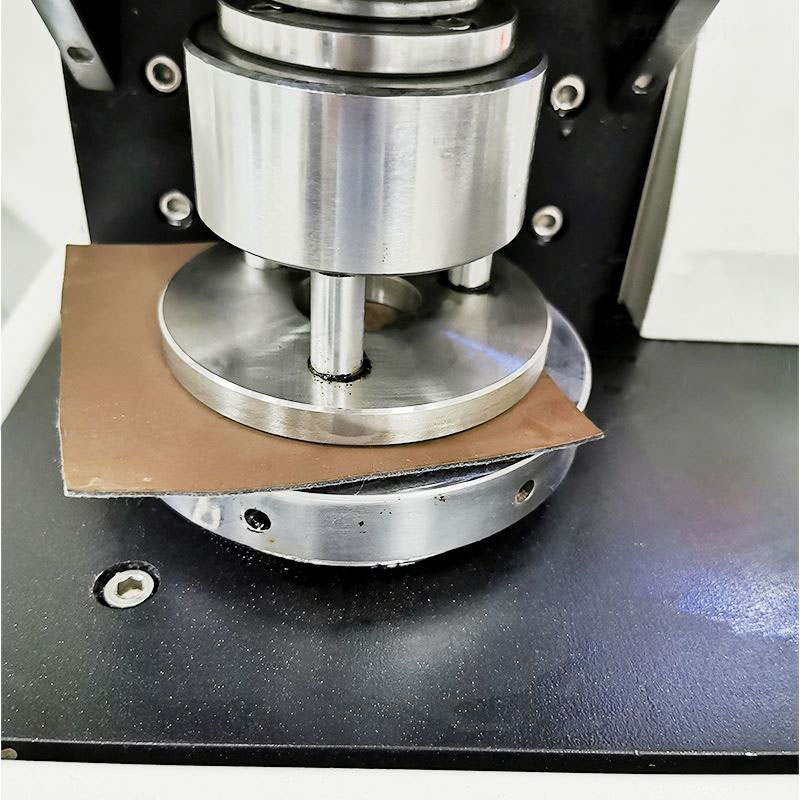

WT-6056 leather breaking strength testing machine

WT-6056 leather breaking strength testing machine

WT-6056 leather breaking strength testing machine

WT-6056 leather breaking strength testing machine.pdf


1. Introductions

The leather breaking strength testing machine is used to test the anti rupture strength performance of leather, synthetic leather, coated fabrics, etc. used in products such as shoe uppers, clothing, cardboard, automobiles, textiles, furniture, etc.



2. Relative test methods

JIS L1004,JIS L1018,JIS L1031,GB/T 20027,JIS K6328,JIS P8131,JIS P8112,ASTM D2210,TAPPI T403,GB/T 3093



3.specifications

No.

Item

Spec.

1

Specimen clamp force

690kPa(adjustable)

2

Sealing performance of test system

Press decrease 10%Pmax in 1 minute

3

Resolution

0.1kPa

4

Air displacement

0.02-0.3m3/min

5

Rated pressure

0-6-0.7

6

Test unit

Pa, kPa, kgf, LB

7

Breaking strength measuring range

0-80kg

8

Air pressure source

Min. 6kg/cm2 (Customer self provided)

9

Pressure loading speed

170±15ml/min

10

Hydraulic oil

85% glycerol, 15% distilled water

11

Diameter of clamp ring

φ31.5mm

12

Dimension

440x420x560mm

13

Power supply

AC220V±10%, 50Hz, 120W

4.features

4.1 Surface treatment of the body: Using DuPont powder from the United States and electrostatic spray painting technology, it is cured at high temperature of 200 to ensure long-lasting color fastness.

4.2 LED-SLD806 integrated display control box, menu style operation mode;

4.3 Mechanical components are composed of non corrosive structural aluminum and stainless steel materials;

4.4 Precision drive motor, running smoothly and with low noise;

4.5 High precision bearings are selected for smooth and stable rotation, with a long service life;

4.6 One click fully automatic testing, easy and convenient to operate;

4.7 Alloy steel sensor, high precision, stable and durable;

4.8 Semi automatic, hydraulic sensing force, handwheel fixed and fastened;
