WT-6027 shoe compression and sole penetration resistance testing machine

WT-6027 toe cap compression and sole penetration testing machine.pdf

1. Introductions

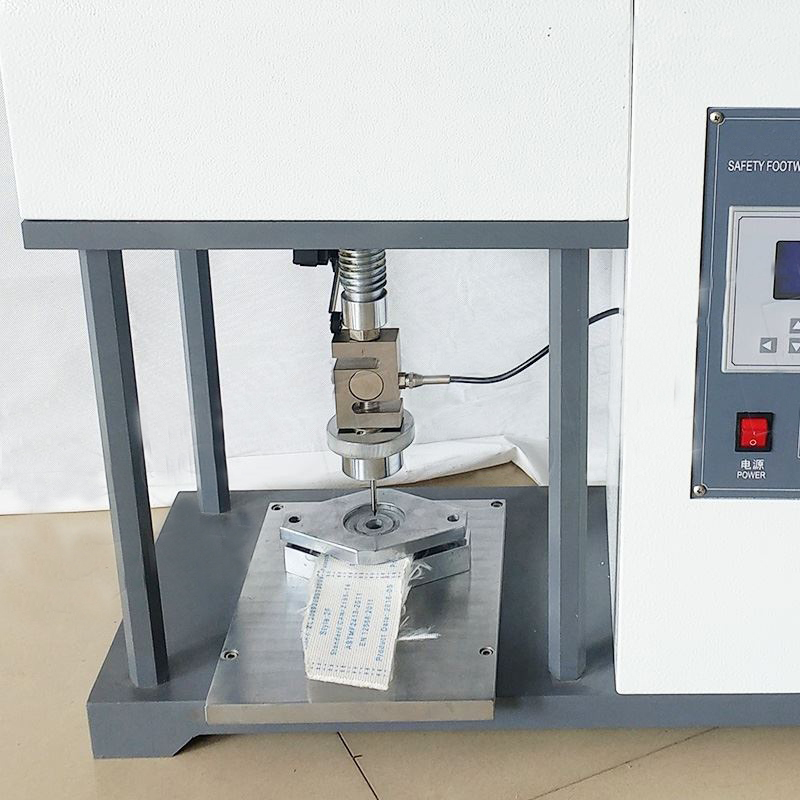

The safety shoe toe cap compression and sole penetration resistance testing machine is mainly used to test the compression resistance of the toe cap of safety shoes. The instrument applies a continuous pressing force to the fixed toe cap at a speed of 5mm/min, such as 15000N and holding the force for 1 minute, then measure the height of the cylinder inserted in the shoes. The fixture can also be replaced for nail penetration testing of safety shoe midsole materials. The specimen is fixed on the fixture and punctured or zero punctured at a speed of 10mm/min to measure the maximum nail penetration force value.

2. Relative test methods

GB/T 20991/ ISO 20344 personal protective equipment——test methods for footwear

CSA Z195 protective footwear

ASTM F2413 standard specification for performance requirements for protective (safety) toe cap footwear

BS 953 methods of test for safety and protective footwear

GB21148 / ISO 20345 personal protective equipment——safety footwear

3.specifications

4. features

l  Body surface treatment: Using DuPont powder from the United States and electrostatic spray painting technology, it is cured at high temperature of 200 ℃ to ensure long-lasting color fastness.

l  LED-SLD806 integrated display control box, menu style operation mode

l  The position can be adjusted by jogging, and the test speed can be adjusted

l  Mechanical components are composed of non-corrosive structures and stainless steel materials

l  Precision motor drive, accurate control, smooth operation, low noise

l  One click fully automatic testing, easy and convenient to operate

l  The body is equipped with an upper limit protection device to prevent extreme displacement

l  Prepare testing fixture sets for European, national, American, and Canada standards to facilitate comprehensive testing of projects by customers

l  Switching between two testing modes for easy switching operation

l  Result numerical storage function, with the ability to save 10 historical data points
