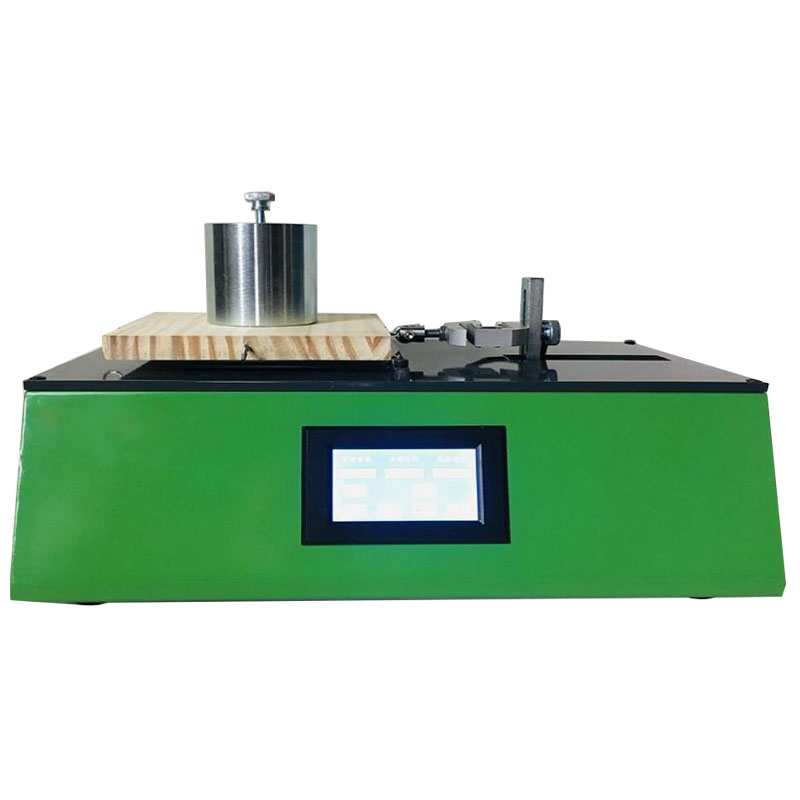

Friction coefficient tester
Friction coefficient tester
Friction coefficient tester
Friction coefficient tester.jpg
1.introductions
l The friction coefficient tester is suitable for the static and dynamic friction coefficient testing for flooring coating materials, ground stones, ceramic tiles, plastic films and sheets, rubber, paper, woven bags and daily chemical products, etc.
l By measuring the smoothness of the materials, it can control and adjust the producing process to save cost and produce good quality products.
l Adopting touch screen control, with protecting functions of limit stroke and over loading.
l Measuring accurate, adjustable test rate, easy to operate.
2.specifications
No. | Item | Spec |
1 | Force measuring range | 0-100N、0-200N、0-500N (optional) |
2 | Force measuring accuracy | 0.1 |
3 | Weight of block | 50N、4.5kg、2700g (optional) |
4 | Power | 240W |
5 | Voltage | 220V |
6 | Loading mode | Electrical evenly loading |
7 | 400g silicon carbide sandpaper | 2 pcs |
8 | P220 sic powder | 1 pack |
9 | Float glass | 150x150x5mm,100x100x5mm |
