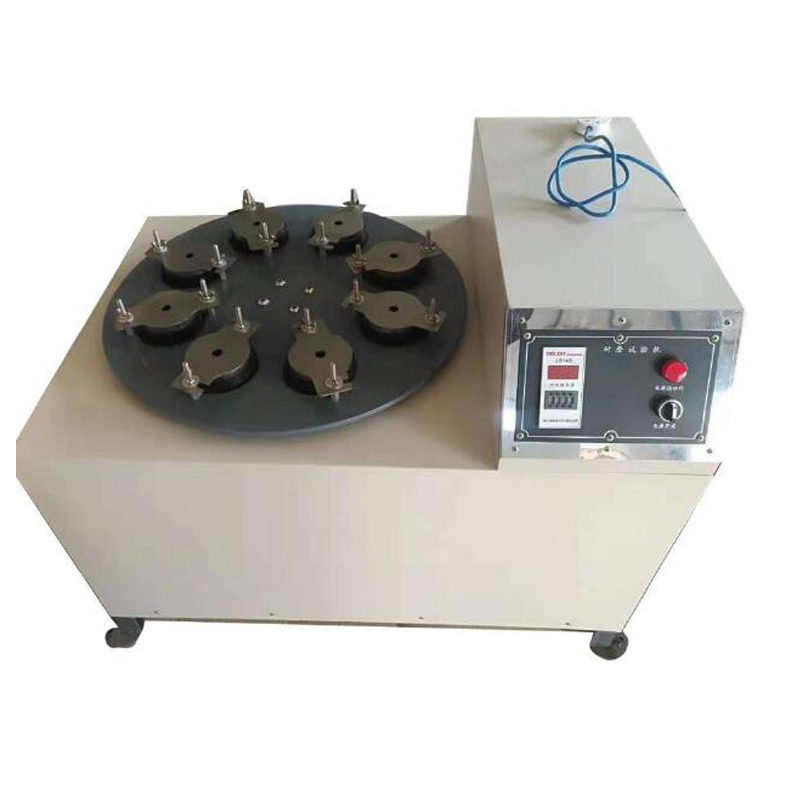

Ceramic tiles glazed surface abrasion tester YM-8

9.Ceramic tiles glazed surface abrasion tester YM-8.jpg

1.introductions

Place a certain amount of abrasive on the ceramic glazed tile, use the ceramic tiles glazed surface abrasion tester to grind it on the ceramic tile glaze, and then observe and compare the worn and unwear samples to evaluate the wear resistance of the ceramic tile

2.test method

GB/T3810.7 test methods of ceramic tiles---part 7:determination of resistance to surface abrasion for glazed tiles

ISO 10545-7 ceramic tiles---part 7:determination of resistance to surface abrasion for glazed tiles

3.specifications

No.	Item	Spec
1	Test sample size	100x100mm
2	Sample quantity of each test	8 pcs max
3	Distance between working table center and sample center	195mm
4	Rotating speed of working table	300±10%p/min
5	Eccentricity	e=22.5mm
6	Inside diameter if metal grip with rubber sealing	83mm
7	Inside height of grip	25.5mm
8	Test area	54cm²
9	Abrasion medium	Dia.5mm steel ball:70.0g Dia.3mm steel ball:52.5g Dia.2mm steel ball:43.75g
10	F80 grit corundum abrasive	3g
