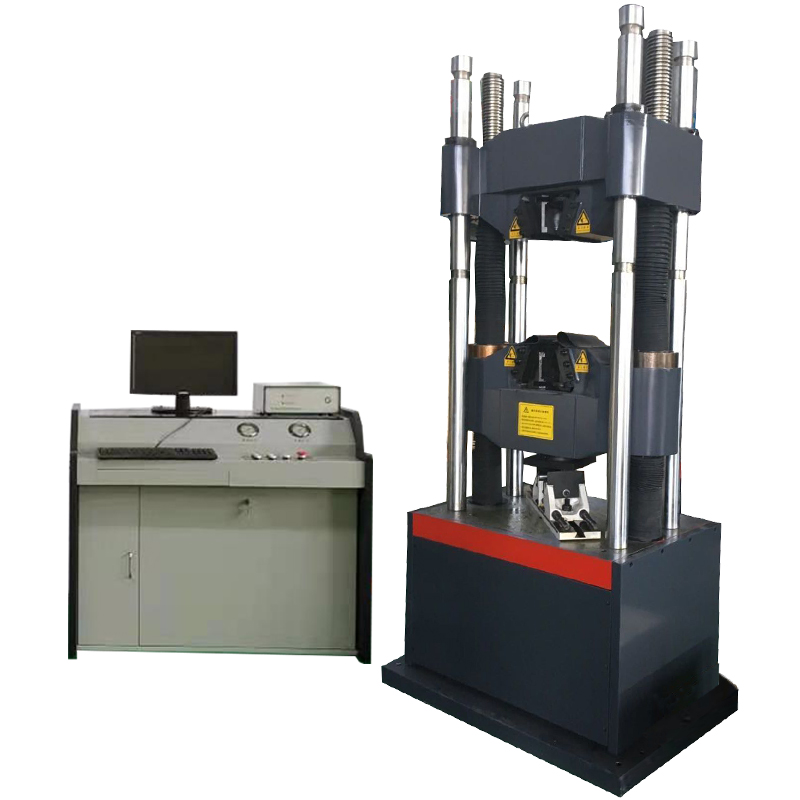

200 ton tension stress testing equipment

1. Brief introduction

l Suitable for tension, compress, shear, peeling, tear, test

l Attractive appearance, easy operating, stable and reliable

l Dual test space, upper space for tension test, bottom space for compress test

l Crossbeam speed can reach up to 1000mm/min, suitable for most test speed

l Low noise during test

l Suitable for industries of metal manufacturing, non-metal manufacturing, industrial and mining enterprises, technical supervision, commodity inspection and arbitration and other departments

2. Relative test method

GB/T 2611-2007 general requirement for testing machines

GB/T 3159-2008 hydraulic universal testing machines

GB/T 16826-2008 electro-hydraulic servo universal testing machine

JJG 1063-2010 electro-hydraulic servo universal testing machines

GB/T 16825.1-2008 verification of static uniaxial testing machines---part 1: tension/ compression testing machines---verification and calibration of the force measuring system

ISO 7500-1:2004 metallic materials-verification of static uniaxial testing machine-Part 1: tension/compression testing machines-verification and calibration of the force-measuring system

JJG 139-1999 tension, compression and universal testing machines

JB/T 6146-2007 specification for the extensometers

GB/T 228.1-2010 metallic materials---tensile testing---part 1: method of test at room temperature

ISO 6892-1:2016 metallic materials-tensile testing-part 1: method of test at room temperature

GB/T 7314-2017 metallic materials--- compression test method at room temperature

GB/T 232-2010 metallic materials---bend test

ISO 7438:2016 metallic materials-bend test

3. Specifications

1	Force capacity	2000KN
2	Force measuring range	1%-100%
3	Accuracy	±0.5% or ±1%
4	Force resolution	±1/500000
5	Deformation measuring range	1%-100%FS
6	Accuracy of deformation value	±0.5% or ±1%
7	Accuracy of displacement value	±0.5% or ±1%
8	Stress rate	1-45Mpa/s
9	Strain rate	0.001-0.5mm/s
10	Displacement rate	0.02-3mm/s
11	Adjusting mode of lower crossbeam	Chain transmission
12	Tension space	750mm
13	Compression space	700mm
14	Distance between columns	600mm
15	Piston stroke	250mm
16	Dimension	950x620x3000mm
17	Grips for round specimen	Ф20-70mm
18	Grips for flat specimen	0-60mm
19	Overall power	4.5KW
20	Weight	6500kg

4. Standard configuration

1	Main loading frame	1 set
2	Full digital controller	1 set
3	Oil source cabinet	1 set
4	Oil pressure sensor	1 pc
5	Displacement sensor	1 pc
6	Grips for round specimen Ф20-70mm	1 set
7	Grips for flat specimen 0-60mm	1 set
8	Compress platen	1 set

5.Software introduction

5.1 auto stop: crossbeam auto stop when sample break

5.2 auto save: test parameters, test curves and test results can be auto saved after test

5.3 speed adjusting: speed of crossbeam can be adjusted during test automatically or manually

5.4 auto calibrating: system can do auto calibrating

5.5 easy operate: computer software can auto finish test procedures, measuring, displaying and analyze test data.

5.6 batch test: for test sample with same parameters, test can be finished in order after one time setting

5.7 display mode: data and curves can be displayed during test in real time

5.8 curves scanning: test curves can be re-analyzed after test, test date of each point on the test curve can be displayed via mouse click

5.9 curve choosing: stress-strain curve, force-displacement curve, force-time curve, displacement-time curve can be chosen accords with test requirement.

5.10 test report: test report can be printed in different format

5.11 stroke protection: mechanism and program control protecting functions

5.12 Over load protecting: when force is more than 3%-5%of rated capacity, machine will auto stop.
