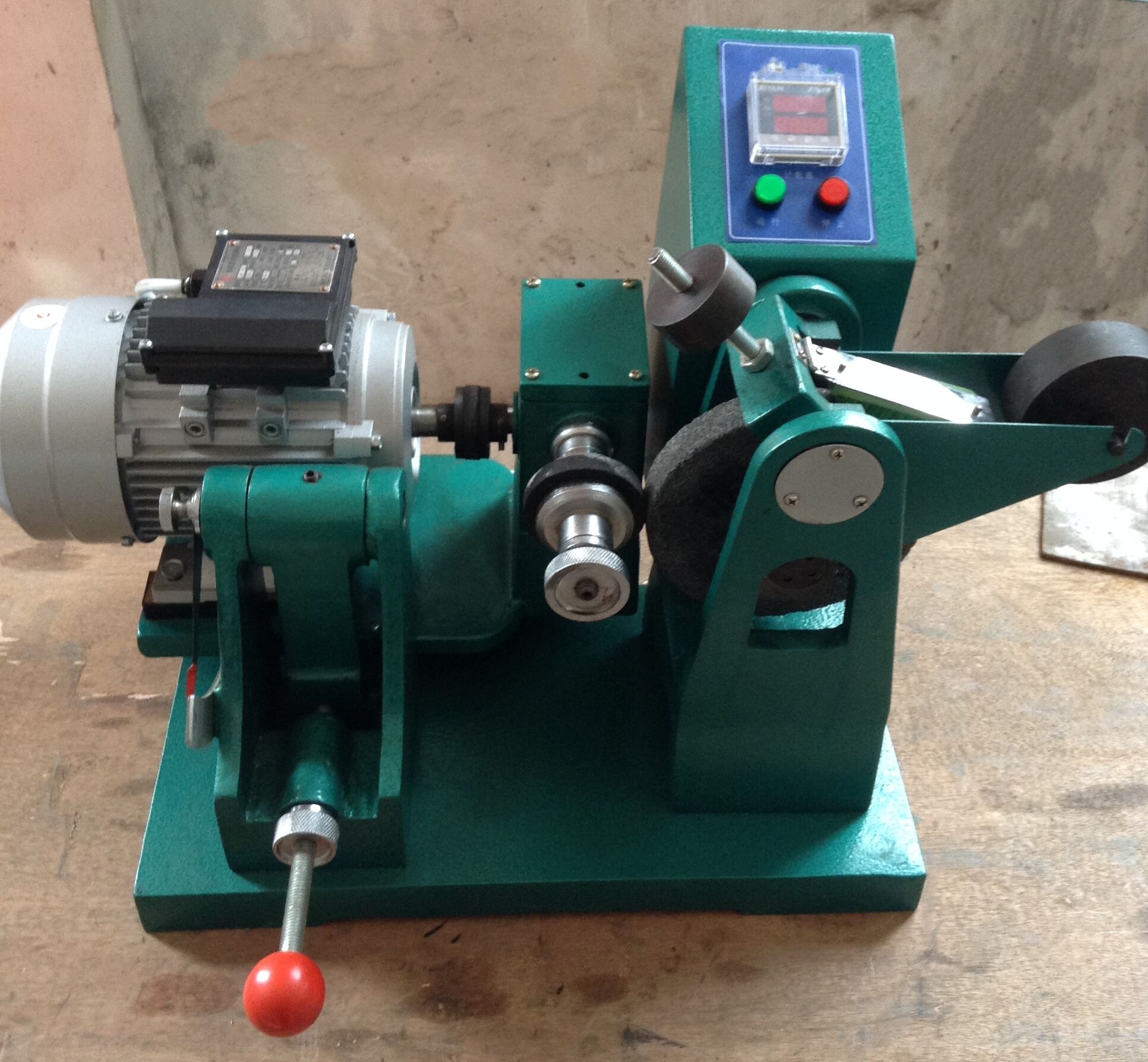

Acron wear tester

This machine is used to measure the wear resistance of vulcanized rubber. During the test, the sample and the grinding wheel are rubbed at a certain inclination angle and under a certain load to measure the wear volume of the sample within a certain mileage.

Description
Inquiry

Acron wear tester

This machine is used to measure the wear resistance of vulcanized rubber. During the test, the sample and the grinding wheel are rubbed at a certain inclination angle and under a certain load to measure the wear volume of the sample within a certain mileage.

The main technical parameters of the Acron wear test machine
1 sample bearing load 26.7 ± 0.2N
2. Rubber wheel shaft rotation speed 76r/min±2r/min
3 Grinding wheel shaft rotation speed 34r/min±1 r/min
4 The angle between the rubber wheel shaft and the grinding wheel can be adjusted to 15° or 25°.
5 power supply voltage Ac220v
6 power consumption 250W
7 Dimensions 600×480×400 (mm)
8 net weight 60kg
