Asphalt mixture flexural testing machine SYD-0715

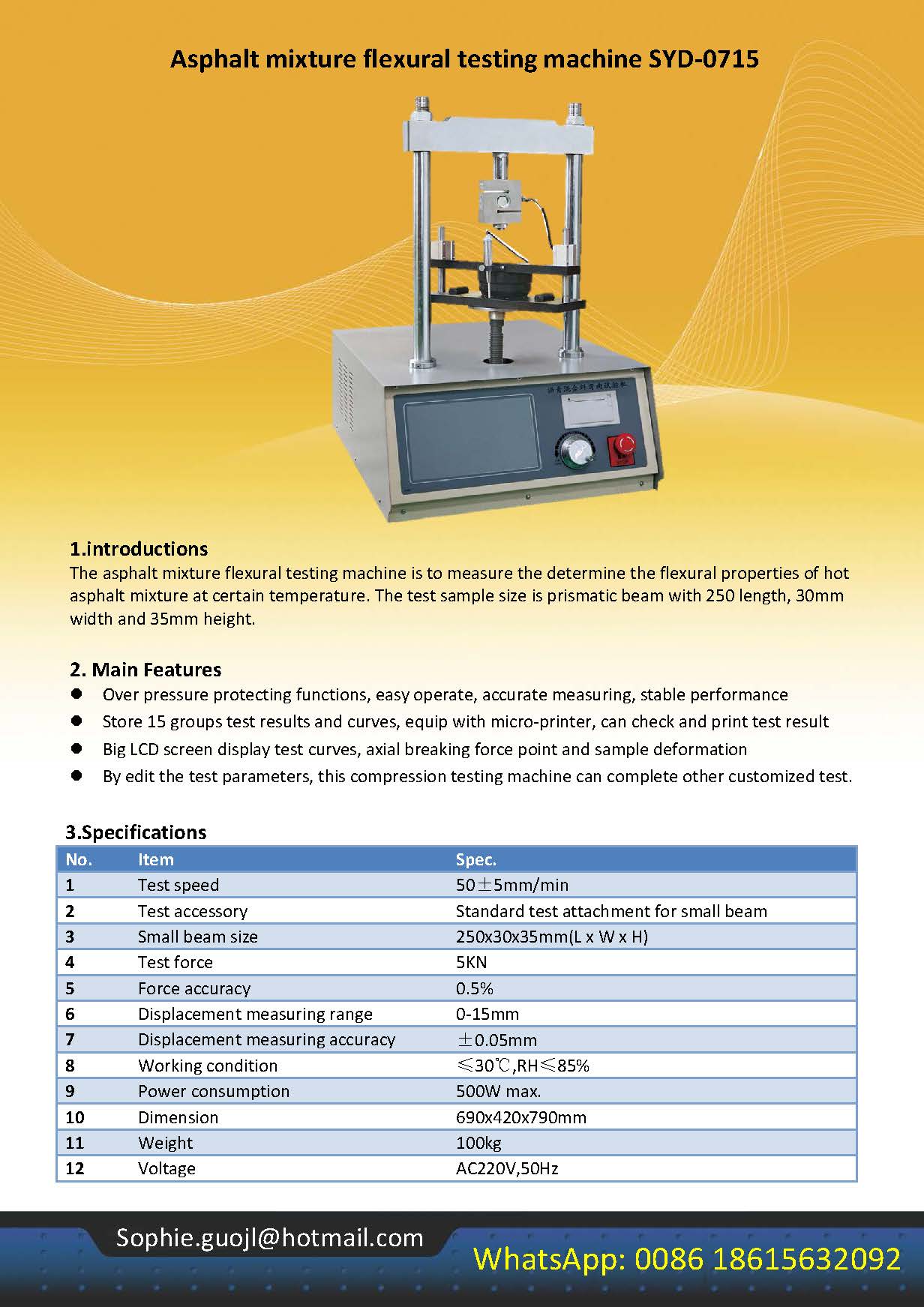

Asphalt mixture flexural testing machine SYD-0715.jpg

1.introductions

The asphalt mixture flexural testing machine is to measure the determine the flexural properties of hot asphalt mixture at certain temperature. The test sample size is prismatic beam with 250 length, 30mm width and 35mm height.

2. Main Features

l Over pressure protecting functions, easy operate, accurate measuring, stable performance

l Store 15 groups test results and curves, equip with micro-printer, can check and print test result

l Big LCD screen display test curves, axial breaking force point and sample deformation

l By edit the test parameters, this compression testing machine can complete other customized test.

3.specifications

No.	Item	Spec.
1	Test speed	50±5mm/min
2	Test accessory	Standard test attachment for small beam
3	Small beam size	250x30x35mm(L x W x H)
4	Test force	5KN
5	Force accuracy	0.5%
6	Displacement measuring range	0-15mm
7	Displacement measuring accuracy	±0.05mm
8	Working condition	≤30℃,RH≤85%
9	Power consumption	500W max.
10	Dimension	690x420x790mm
11	Weight	100kg
12	Voltage	AC220V,50Hz
