Horizontal tensile testing machine installation requirements and introductions

Horizontal tensile testing machine

1 Introduction

The horizontal tensile testing machine is mainly used for tensile strength testing of steel pins, large structural parts, flexible parts and rigid long shafts. The horizontal tensile testing machine is equipped with special Windows based software measuring the performance parameters of the test piece according to the national standard or the test method provided by the user, and can also performs statistics and processing test data, and then output the test curve and test report.

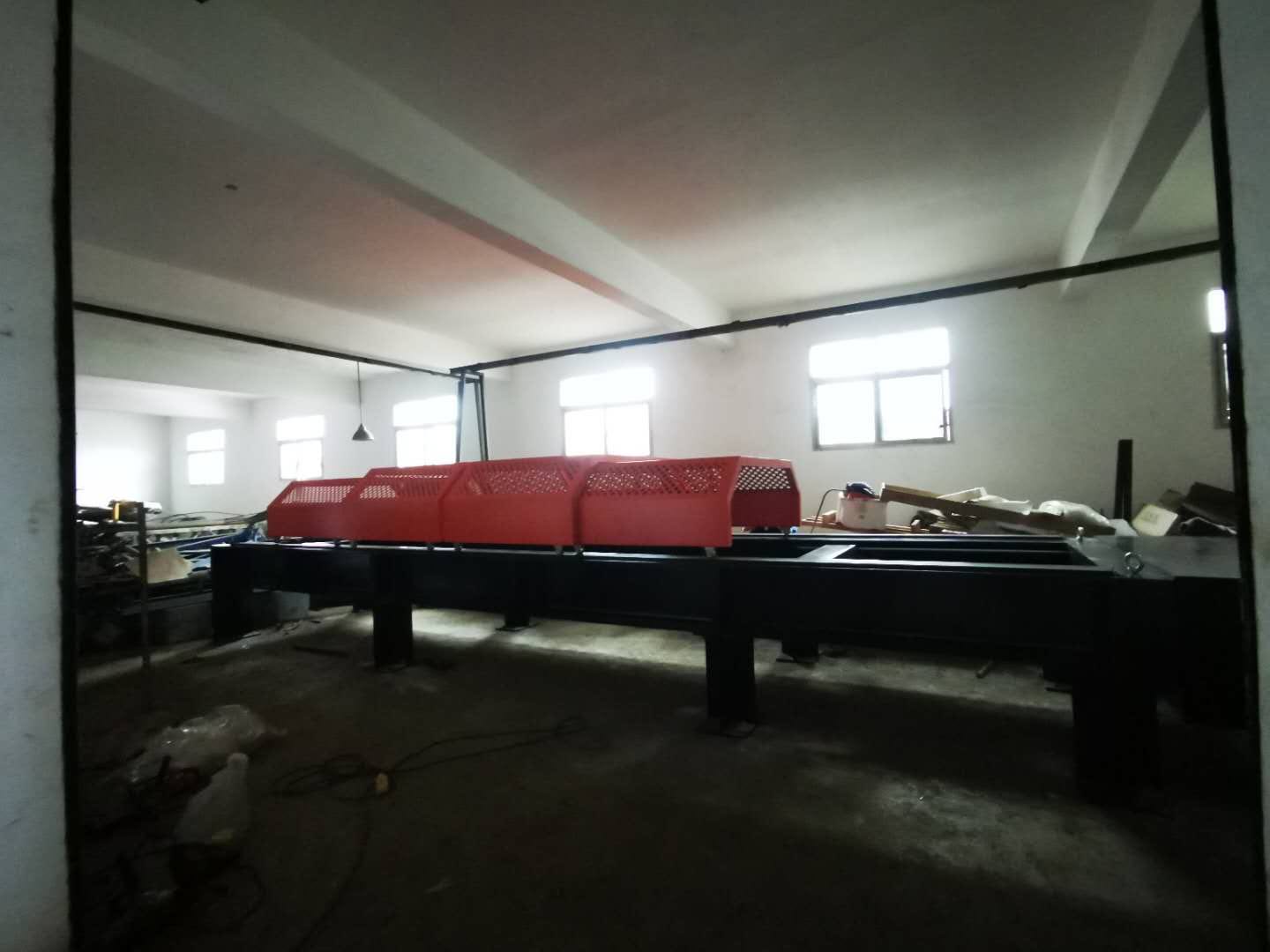

horizontal tensile tester.jpg

2. Installation site requirements

a. In the range of room temperature 10--35, the relative humidity is not more than 80%;

b. On a solid concrete foundation (bearing capacity 100kN/m2), properly installed,

c. In a vibration-free environment;

d. There is no corrosive medium around;

e. The power supply system is three-phase four-wire AC 380V 50Hz, and the voltage fluctuation range should not be greater than +10% of the standard voltage;

f. The power supply of the testing machine should be reliably grounded;

g. The space around the testing machine is not less than 1m, which is convenient for operation, debugging and maintenance.

3. Technical specifications

Maximum load: 3000kN

Structural form: single-rod double-acting cylinder frame structure

Loading speed: 0.5kN-50kN/S

Test operating height: 900mm

Drive control mode: computer control

Test type: room temperature stretching, etc.

Overload protection: 105% overload protection (no deformation, no mechanical damage)

Machine noise: no more than 70dB

Load indication accuracy: better than ±1% of indication

Load resolution: 500,000 yards, and the full resolution remains unchanged

Force value measurement range: 2%100%F·S (60kN3000kN, no grades in the whole process)

Load control accuracy: better than ±1% of the indicated value

Stress control accuracy: better than ±1% of the indicated value

Accuracy of displacement indication: better than ±0.5% of indication

Displacement Resolution: 0.001mm

Displacement control accuracy (speed): better than ±0.5% of the indicated value

Piston moving speed range: 0-200mm/min stepless speed regulation

Piston stroke: 1500 mm

Maximum stretching space: 10000 mm (can be configured upon request)

Maximum compression space: 1500mm

Stretch space adjustment interval: 500 mm

Stretched space width (inner net width): 800 mm

Center height of stretching space: 600 mm

Motor power: 11kW

The maximum external dimension of the host (approx.): 14500mm × 1500mm × 900mm (length × width × height)
