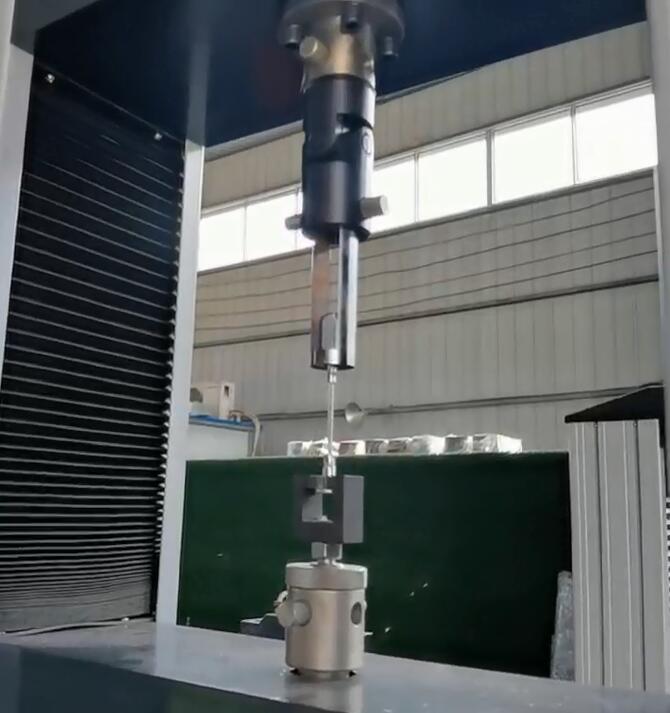

pictures of WDW-5KN locker pull out force tensile testing machine

WDW-5KN lock  pull-out tensile testing machine is used to test the pull-out force of  middle door locks, container locks, oil tank locks and grid car locks.  The 5KN tensile testing machine is controlled by computer, displays the  test force value and test curve in real time, and automatically saves  the test results after the test is completed.

WDW-5KN  microcomputer control lock pull-out tensile testing machine mainframe  is connected by upper beam, moving beam and worktable through column and  ball screw into a rigid desktop frame structure, AC servo motor and AC  servo speed control system are installed under the worktable, The servo  motor drives the double ball screw to rotate through the synchronous  toothed belt deceleration mechanism, thereby driving the moving beam to  move up and down to realize the loading of the sample (compression and  bending attachments are installed between the moving beam and the  worktable, which can be used for metal or non-metallic materials.  Compression and bending tests are performed on metal material samples; a  tensile attachment is installed between the moving beam and the upper  beam, and tensile tests can be performed on metal or non-metallic  material samples). The load cell is installed at the lower part of the  moving beam to measure the size of the test force; the AC servo motor  has a built-in displacement measurement system, which is used to measure  the displacement of the sample, and can also approximate the  deformation of the sample; for some metal materials, The testing machine  is equipped with a special measuring device for the elongation of the  sample - an extensometer. The double clamps of the extensometer clamp  the two points of the sample's gauge length, and measure the separation  distance between the two points of the sample's gauge length in real  time, that is, the deformation of the sample. (PC or LCD  microcontroller) to control the test process and realize data processing  and output

Middle  door lock tensile testing machine, container lock tensile testing  machine, oil tank lock tensile testing machine, grid car lock tensile  testing machine, middle door lock tensile testing instrument, container  lock tensile testing instrument, oil tank lock tensile testing  instrument, grid car lock Tensile  test equipment, middle door lock pulling machine, container lock  pulling machine, grid car lock pulling machine, middle door lock pulling  machine

details of WDW-5KN computerized lock pull out force testing machine,please click
